Features

Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity. In addition, Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.

Speficications

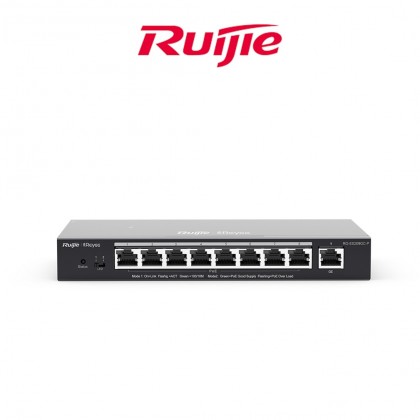

Model RG-ES210GC-LP

Switching capacity 20Gbps

Switching Cache 1.5Mbit

Package forwarding rate 14.8Mpps

Ports 8 10/100/1000 Base-T ports (PoE/PoE+), 2 10/100/1000 Base-T uplink port

PoE Standard IEEE 802.3at / 802.af

PoE Power Budget 70W

Speed / Duplex mode Auto / Half / Full duplex Speed auto / 10/ 100 /1000

MAC address 4K

Maximum Number of VLANs 16

Allowed VLAN ID 1 ~ 4094

Port-based VLAN Support

Flow Control Support

Loop Protection Support

Unknown Unicast Suppression Support

Multicast / Broadcast Storm Suppression Support

Mirroring Many-to-One Mirroring

Port Isolation Support

Cable Testing Support

ICMP Ping Support

DNS DNS Client

Telnet Support

MACC Support

Port Surge Common mode 4KV

Electrostatic Discharge Air discharge 6KV, Contact discharge 4KV

Power Consumption ≤ 80W

Power supply External power adapter 100-240V

Warranty Limited 3-Year Warranty
